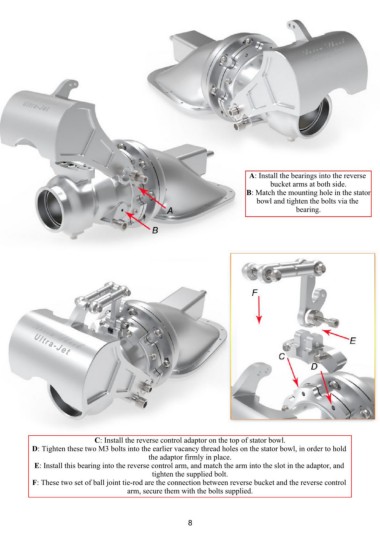

A: Install the bearings into the reverse
bucket arms at both side.
B: Match the mounting hole in the stator
bowl and tighten the bolts via the
bearing.

C: Install the reverse control adaptor on the top of stator bowl.
D: Tighten these two M3 bolts into the earlier vacancy thread holes on the stator bowl, in order to hold
the adaptor firmly in place.
E: Install this bearing into the reverse control arm, and match the arm into the slot in the adaptor, and
tighten the supplied bolt.
F: These two set of ball joint tie-rod are the connection between reverse bucket and the reverse control
arm, secure them with the bolts supplied.
