Page 10 - Arrow Shark Ultra-Jet Owner Manual

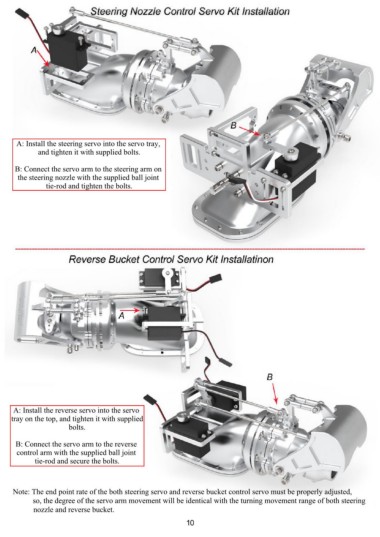

A: Install the steering servo into the servo tray,
and tighten it with supplied bolts.

B: Connect the servo arm to the steering arm on
the steering nozzle with the supplied ball joint
tie-rod and tighten the bolts.

A: Install the reverse servo into the servo
tray on the top, and tighten it with supplied
bolts.

B: Connect the servo arm to the reverse
control arm with the supplied ball joint
tie-rod and secure the bolts.

Note: The end point rate of the both steering servo and reverse bucket control servo must be properly adjusted,
so, the degree of the servo arm movement will be identical with the turning movement range of both steering
nozzle and reverse bucket.
