Page 11 - Arrow Shark Ultra-Jet Owner Manual

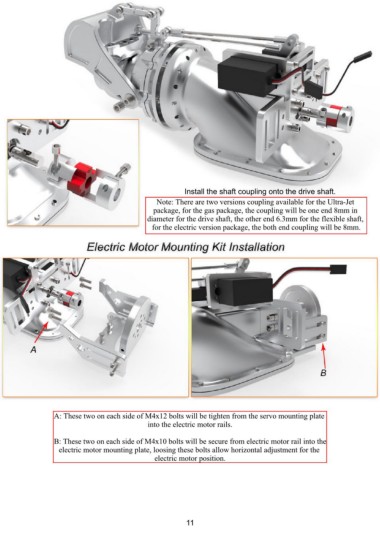

Install the shaft coupling onto the drive shaft.
Note: There are two versions coupling available for the Ultra-Jet
package, for the gas package, the coupling will be one end 8mm in
diameter for the drive shaft, the other end 6.3mm for the flexible shaft,
for the electric version package, the both end coupling will be 8mm.

A: These two on each side of M4x12 bolts will be tighten from the servo mounting plate
into the electric motor rails.

B: These two on each side of M4x10 bolts will be secure from electric motor rail into the
electric motor mounting plate, loosing these bolts allow horizontal adjustment for the
electric motor position.
