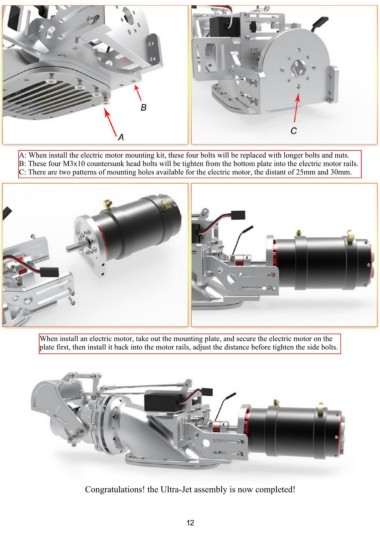

A: When install the electric motor mounting kit, these four bolts will be replaced with longer bolts and nuts.
B: These four M3x10 countersunk head bolts will be tighten from the bottom plate into the electric motor rails.
C: There are two patterns of mounting holes available for the electric motor, the distant of 25mm and 30mm.
When install an electric motor, take out the mounting plate, and secure the electric motor on the
plate first, then install it back into the motor rails, adjust the distance before tighten the side bolts.
Congratulations! the Ultra-Jet assembly is now completed!
