Page 6 - Arrow Shark Ultra-Jet Owner Manual

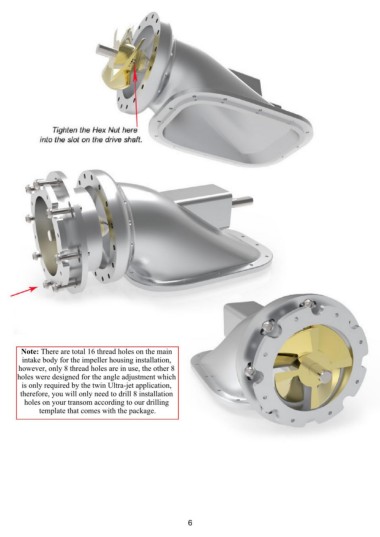

Match the impeller housing into the center hole
of main intake body, and tighten the bolts.

Note: There are total 16 thread holes on the main
intake body for the impeller housing installation,
however, only 8 thread holes are in use, the other 8
holes were designed for the angle adjustment which
is only required by the twin Ultra-jet application,
therefore, you will only need to drill 8 installation
holes on your transom according to our drilling
template that comes with the package.

6
