Drilling the holes for the jet drive installation could be much challenger compare to any other scale drives,
it might be difficult for most experience boaters, not to mention for the beginners, because there are too
many holes to drill, if any one of them in wrong place, it could cause a lot of hassle work to make it right
for the properly installation.

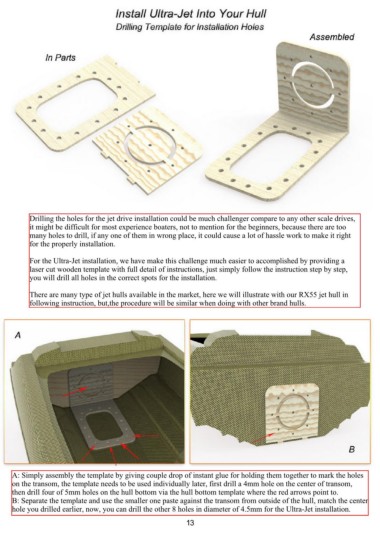

For the Ultra-Jet installation, we have make this challenge much easier to accomplished by providing a
laser cut wooden template with full detail of instructions, just simply follow the instruction step by step,
you will drill all holes in the correct spots for the installation.

There are many type of jet hulls available in the market, here we will illustrate with our RX55 jet hull in
following instruction, but,the procedure will be similar when doing with other brand hulls.

A: Simply assembly the template by giving couple drop of instant glue for holding them together to mark the holes
on the transom, the template needs to be used individually later, first drill a 4mm hole on the center of transom,
then drill four of 5mm holes on the hull bottom via the hull bottom template where the red arrows point to.
B: Separate the template and use the smaller one paste against the transom from outside of the hull, match the center
hole you drilled earlier, now, you can drill the other 8 holes in diameter of 4.5mm for the Ultra-Jet installation.
