Page 7 - Arrow Shark Ultra-Jet Owner Manual

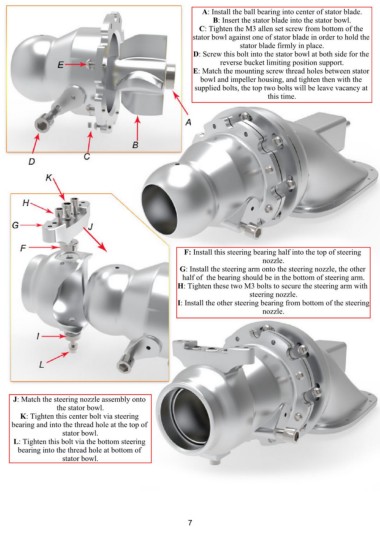

A: Install the ball bearing into center of stator blade.
B: Insert the stator blade into the stator bowl.
C: Tighten the M3 allen set screw from bottom of the
stator bowl against one of stator blade in order to hold the
stator blade firmly in place.
D: Screw this bolt into the stator bowl at both side for the
reverse bucket limiting position support.
E: Match the mounting screw thread holes between stator
bowl and impeller housing, and tighten then with the
supplied bolts, the top two bolts will be leave vacancy at
this time.

F: Install this steering bearing half into the top of steering
nozzle.
G: Install the steering arm onto the steering nozzle, the other
half of the bearing should be in the bottom of steering arm.
H: Tighten these two M3 bolts to secure the steering arm with
steering nozzle.
I: Install the other steering bearing from bottom of the steering
nozzle.

J: Match the steering nozzle assembly onto
the stator bowl.
K: Tighten this center bolt via steering
bearing and into the thread hole at the top of
stator bowl.
L: Tighten this bolt via the bottom steering
bearing into the thread hole at bottom of
stator bowl.
