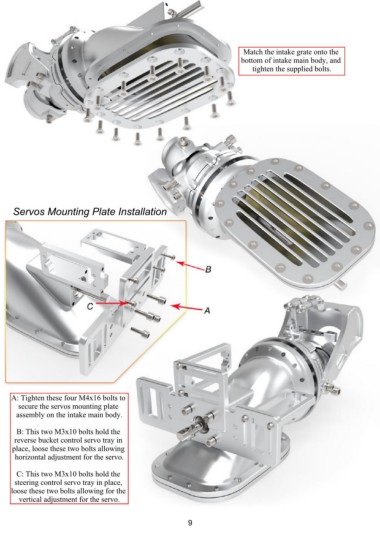

Match the intake grate onto the
bottom of intake main body, and
tighten the supplied bolts.

Servos Mounting Plate Installation

A: Tighten these four M4x16 bolts to
secure the servos mounting plate
assembly on the intake main body.

B: This two M3x10 bolts hold the
reverse bucket control servo tray in
place, loose these two bolts allowing
horizontal adjustment for the servo.

C: This two M3x10 bolts hold the
steering control servo tray in place,
loose these two bolts allowing for the
vertical adjustment for the servo.
