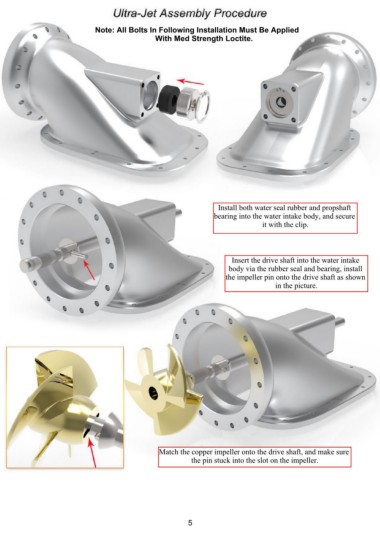

Page 5 - Arrow Shark Ultra-Jet Owner Manual

Note: All Bolts In Following Installation Must Be Applied
With Med Strength Loctite.

Install both water seal rubber and propshaft
bearing into the water intake body, and secure
it with the clip.

Insert the drive shaft into the water intake
body via the rubber seal and bearing, install
the impeller pin onto the drive shaft as shown
in the picture.

Match the copper impeller onto the drive shaft, and make sure
the pin stuck into the slot on the impeller.

5
