Page 3 - Arrow Shark Ultra-Jet Owner Manual
P. 3

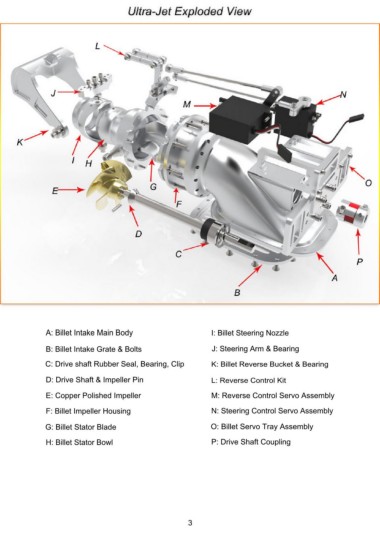

A: Billet Intake Main Body                          I: Billet Steering Nozzle

               B: Billet Intake Grate & Bolts                      J: Steering Arm & Bearing

               C: Drive shaft Rubber Seal, Bearing, Clip           K: Billet Reverse Bucket & Bearing

               D: Drive Shaft & Impeller Pin                       L: Reverse Control Kit

               E: Copper Polished Impeller                         M: Reverse Control Servo Assembly

               F: Billet Impeller Housing                          N: Steering Control Servo Assembly

               G: Billet Stator Blade                              O: Billet Servo Tray Assembly

               H: Billet Stator Bowl                               P: Drive Shaft Coupling














                                                            3
