P. 11

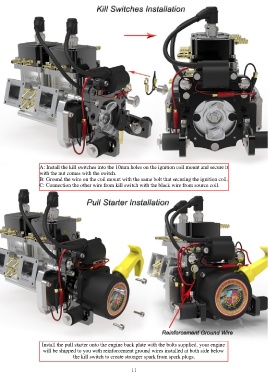

A: Install the kill switches into the 10mm holes on the ignition coil mount and secure it
with the nut comes with the switch.
B: Ground the wire on the coil mount with the same bolt that securing the ignition coil.
C: Connection the other wire from kill switch with the black wire from source coil.
Install the pull starter onto the engine back plate with the bolts supplied. your engine
will be shipped to you with reinforcement ground wires installed at both side below
the kill switch to create stronger spark from spark plugs.
