P. 16

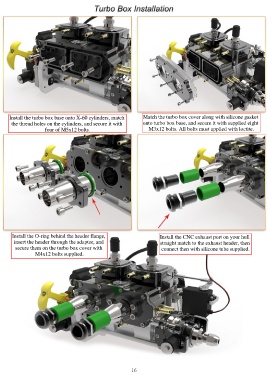

Install the turbo box base onto X-60 cylinders, match Match the turbo box cover along with silicone gasket
the thread holes on the cylinders, and secure it with onto turbo box base, and secure it with supplied eight
four of M5x12 bolts. M3x12 bolts. All bolts must applied with loctite.
Install the O-ring behind the header flange, Install the CNC exhaust port on your hull
insert the header through the adaptor, and straight match to the exhaust header, then
secure them on the turbo box cover with connect then with silicone tube supplied.
M4x12 bolts supplied.
16
