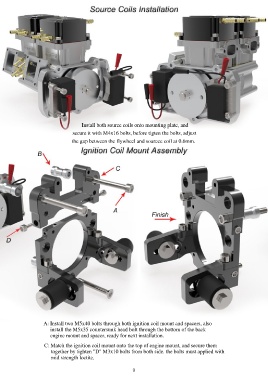

Install both source coils onto mounting plate, and
secure it with M4x16 bolts, before tigten the bolts, adjust
the gap between the flywheel and sourece coil at 0.6mm.

Finish

A: Install two M5x40 bolts through both ignition coil mount and spacers, also
install the M5x35 countersunk head bolt through the bottom of the back
engine mount and spacer, ready for next installation.

C: Match the ignition coil mount onto the top of engine mount, and secure them
together by tighten "D" M3x10 bolts from both side. the bolts must applied with
mid strength loctite.
