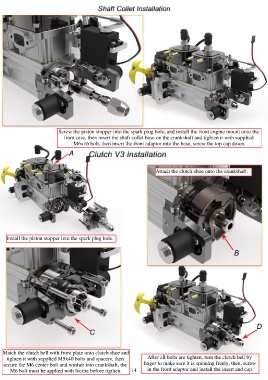

Page 14 - Arrow Shark X-60 Owner Manual

Screw the piston stopper into the spark plug hole, and install the front engine mount onto the
front case, then insert the shaft collet base on the crankshaft and tighten it with supplied
M6x16 bolt, then insert the front adaptor into the base, screw the top cap down.

Attach the clutch shoe onto the crankshaft.

Install the piston stopper into the spark plug hole.

Match the clutch bell with front plate onto clutch shoe and
tighten it with supplied M5x40 bolts and spacers, then After all bolts are tighten, turn the clutch bell by
secure the M6 center bolt and washer into crankshaft, the finger to make sure it is spinning freely, then, screw
M6 bolt must be applied with loctite before tigthen. 14 in the front adaptor and install the insert and cap.
