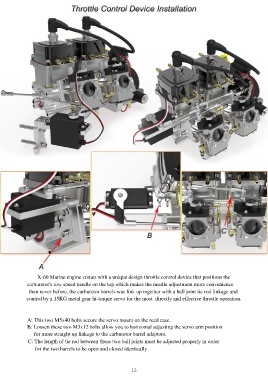

X-60 Marine engine comes with a unique design throttle control device that positions the
carburetor's low speed needle on the top which makes the needle adjustment more convenience
than never before, the carburetor barrels was link up together with a ball joint tie rod linkage and
control by a 15KG metal gear hi-torque servo for the most directly and effective throttle operation.

A: This two M5x40 bolts secure the servo mount on the reed case.
B: Loosen these two M3x12 bolts allow you to horizontal adjusting the servo arm position
for more straight up linkage to the carburetor barrel adaptors.
C: The length of tie rod between these two ball joints must be adjusted properly in order

for the two barrels to be open and closed identically.
