Page 7 - Arrow Shark X-60 Owner Manual

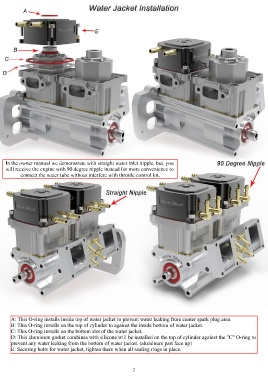

In the owner manual we demonstrate with straight water inlet nipple, but, you
will receive the engine with 90 degree nipple instead for more convenience to
connect the water tube without interfere with throttle control kit.

A: This O-ring installs inside top of water jacket to prevent water leaking from center spark plug area.
B: This O-ring installs on the top of cylinder to against the inside bottom of water jacket.
C: This O-ring installs on the bottom slot of the water jacket.
D: This aluminum gasket combines with silicone will be installed on the top of cylinder against the "C" O-ring to
prevent any water leaking from the bottom of water jacket. (aluminum part face up)
E: Securing bolts for water jacket, tighten them when all sealing rings in place.

7
