Page 6 - Arrow Shark X-60 Owner Manual

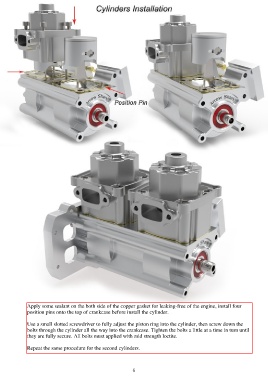

Apply some sealant on the both side of the copper gasket for leaking-free of the engine, install four
position pins onto the top of crankcase before install the cylinder.

Use a small slotted screwdriver to fully adjust the piston ring into the cylinder, then screw down the
bolts through the cylinder all the way into the crankcase. Tighten the bolts a little at a time in turn until
they are fully secure. All bolts must applied with mid strength loctite.

Repeat the same procedure for the second cylinders.

6
