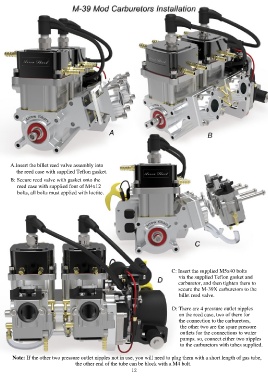

A.Insert the billet reed valve assembly into
the reed case with supplied Teflon gasket.
B: Secure reed valve with gasket onto the
reed case with supplied four of M4x12
bolts, all bolts must applied with loctite.

C: Insert the supplied M5x40 bolts
via the supplied Teflon gasket and
carburetor, and then tighten them to
secure the M-39X carburetors to the
billet reed valve.

D: There are 4 pressure outlet nipples
on the reed case, two of them for
the connection to the carburetors,
the other two are the spare pressure
outlets for the connections to water
pumps. so, connect either two nipples
to the carburetors with tubes supplied.

Note: If the other two pressure outlet nipples not in use, you will need to plug them with a short length of gas tube,
the other end of the tube can be block with a M4 bolt.
