Page 8 - Arrow Shark X-30 Owner Manual

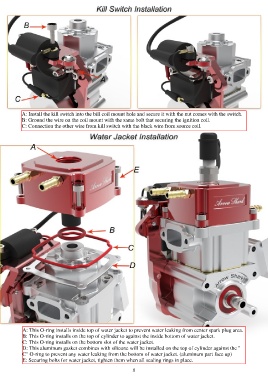

A: Install the kill switch into the bill coil mount hole and secure it with the nut comes with the switch.
B: Ground the wire on the coil mount with the same bolt that securing the ignition coil.
C: Connection the other wire from kill switch with the black wire from source coil.

A: This O-ring installs inside top of water jacket to prevent water leaking from center spark plug area.
B: This O-ring installs on the top of cylinder to against the inside bottom of water jacket.
C: This O-ring installs on the bottom slot of the water jacket.
D: This aluminum gasket combines with silicone will be installed on the top of cylinder against the "
C" O-ring to prevent any water leaking from the bottom of water jacket. (aluminum part face up)
E: Securing bolts for water jacket, tighten them when all sealing rings in place.

8
