Page 10 - Arrow Shark X-30 Owner Manual

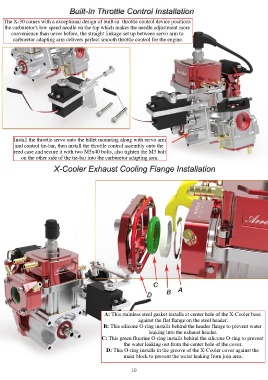

The X-30 comes with a exceptional design of built-in throttle control device positions
the carburetor's low speed needle on the top which makes the needle adjustment more
convenience than never before, the straight linkage set up between servo arm to
carburetor adapting arm delivers perfect smooth throttle control for the engine.

Install the throttle servo onto the billet mounting along with servo arm
and control tie-bar, then install the throttle control assembly onto the
reed case and secure it with two M5x40 bolts, also tighten the M3 bolt
on the other side of the tie-bar into the carburetor adapting arm.

A: This stainless steel gasket installs at center hole of the X-Cooler base
against the flat flange on the steel header.
B: This silicone O-ring installs behind the header flange to prevent water
leaking into the exhaust header.
C: This green fluorine O-ring installs behind the silicone O-ring to prevent
the water leaking out from the center hole of the cover.
D: This O-ring installs in the groove of the X-Cooler cover against the
main block to prevent the water leaking from join area.

10
