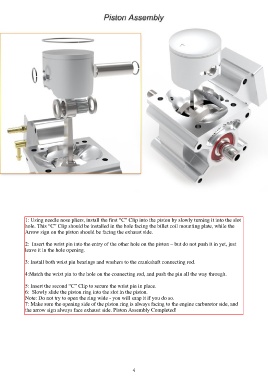

1: Using needle nose pliers, install the first “C” Clip into the piston by slowly turning it into the slot
hole. This “C” Clip should be installed in the hole facing the billet coil mounting plate, while the
Arrow sign on the piston should be facing the exhaust side.

2: Insert the wrist pin into the entry of the other hole on the piston – but do not push it in yet, just
leave it in the hole opening.

3: Install both wrist pin bearings and washers to the crankshaft connecting rod.

4:Match the wrist pin to the hole on the connecting rod, and push the pin all the way through.

5: Insert the second “C” Clip to secure the wrist pin in place.
6: Slowly slide the piston ring into the slot in the piston.
Note: Do not try to open the ring wide - you will snap it if you do so.
7: Make sure the opening side of the piston ring is always facing to the engine carburetor side, and
the arrow sign always face exhaust side. Piston Assembly Completed!
