P. 7

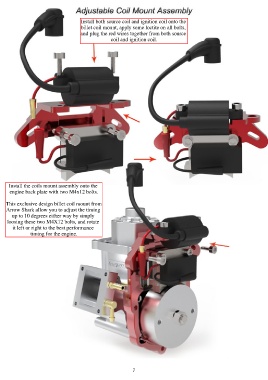

Install both source coil and ignition coil onto the
billet coil mount, apply some loctite on all bolts,
and plug the red wires together from both source
coil and ignition coil.
Install the coils mount assembly onto the
engine back plate with two M4x12 bolts.
This exclusive design billet coil mount from
Arrow Shark allow you to adjust the timing
up to 10 degrees either way by simply
loosing these two M4X12 bolts, and rotate
it left or right to the best performance
timing for the engine.
7
