Page 3 - Arrow Shark X-30 Owner Manual
P. 3

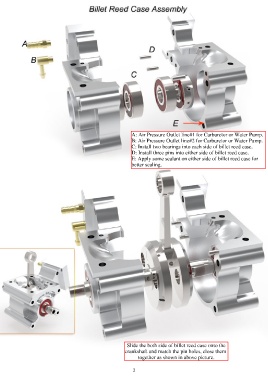

A: Air Pressure Outlet line#1 for Carburetor or Water Pump.
B: Air Pressure Outlet line#2 for Carburetor or Water Pump.
C: Install two bearings into each side of billet reed case.
D: Install three pins into either side of billet reed case.
E: Apply some sealant on either side of billet reed case for
better sealing.
Slide the both side of billet reed case onto the
crankshaft and match the pin holes, close them
together as shown in above picture.
