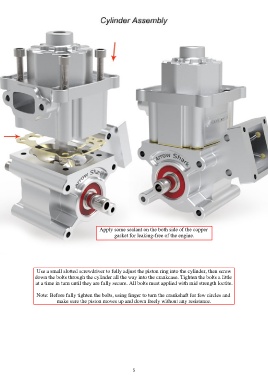

Apply some sealant on the both side of the copper
gasket for leaking-free of the engine.
Use a small slotted screwdriver to fully adjust the piston ring into the cylinder, then screw
down the bolts through the cylinder all the way into the crankcase. Tighten the bolts a little
at a time in turn until they are fully secure. All bolts must applied with mid strength loctite.
Note: Before fully tighten the bolts, using finger to turn the crankshaft for few circles and
make sure the piston moves up and down freely without any resistance.
