Page 12 - Arrow Shark X-30 Owner Manual

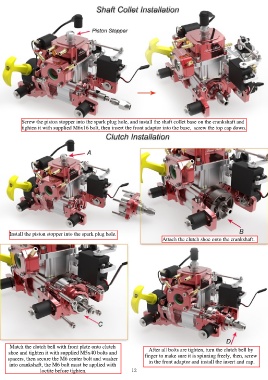

Screw the piston stopper into the spark plug hole, and install the shaft collet base on the crankshaft and
tighten it with supplied M6x16 bolt, then insert the front adaptor into the base, screw the top cap down.

Install the piston stopper into the spark plug hole.
Attach the clutch shoe onto the crankshaft.

Match the clutch bell with front plate onto clutch After all bolts are tighten, turn the clutch bell by
shoe and tighten it with supplied M5x40 bolts and
spacers, then secure the M6 center bolt and washer finger to make sure it is spinning freely, then, screw
into crankshaft, the M6 bolt must be applied with in the front adaptor and install the insert and cap.
loctite before tighten. 12
