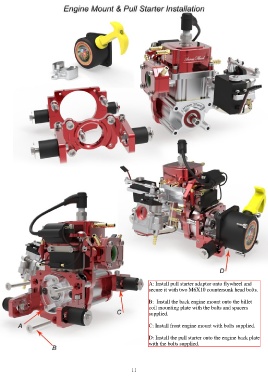

A: Install pull starter adaptor onto flywheel and
                                                                   secure it with two M6X10 countersunk head bolts.

                                                                   B:  Install the back engine mount onto the billet
                                                                   coil mounting plate with the bolts and spacers
                                                                   supplied.


                                                                   C: Install front engine mount with bolts supplied.

                                                                   D: Install the pull starter onto the engine back plate
                                                                   with the bolts supplied.
