Page 9 - Arrow Shark TS760-Hybrid Power Kit Owner Manual
P. 9

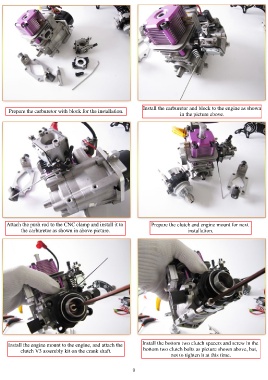

Install the carburetor and block to the engine as shown
Prepare the carburetor with block for the installation.
in the picture above.
Attach the push rod to the CNC clamp and install it to Prepare the clutch and engine mount for next
the carburetor as shown in above picture. installation.
Install the engine mount to the engine, and attach the Install the bottom two clutch spacers and screw in the
clutch V3 assembly kit on the crank shaft. bottom two clutch bolts as picture shown above, but,
not to tighten it at this time.
9
