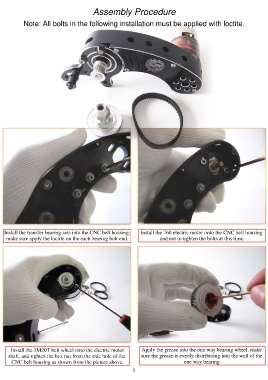

Assembly Procedure
Note: All bolts in the following installation must be applied with loctite.
Install the transfer bearing sets into the CNC belt housing; Install the 760 electric motor onto the CNC belt housing
make sure apply the loctite on the each bearing bolt end. and not to tighten the bolts at this time.
Install the 3M20T belt wheel onto the electric motor Apply the grease into the one way bearing wheel, make
shaft, and tighten the hex nut from the side hole of the sure the grease is evenly distributing into the wall of the
CNC belt housing as shown from the picture above. one way bearing.
