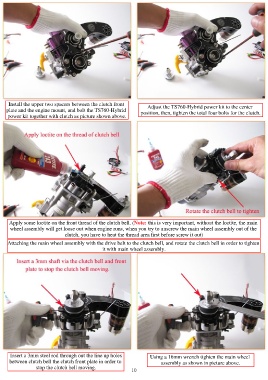

Page 10 - Arrow Shark TS760-Hybrid Power Kit Owner Manual

Install the upper two spacers between the clutch front Adjust the TS760-Hybrid power kit to the center
plate and the engine mount, and bolt the TS760-Hybrid position, then, tighten the total four bolts for the clutch.
power kit together with clutch as picture shown above.

Apply some loctite on the front thread of the clutch bell. (Note: this is very important, without the loctite, the main
wheel assembly will get loose out when engine runs, when you try to unscrew the main wheel assembly out of the
clutch, you have to heat the thread area first before screw it out)

Attaching the main wheel assembly with the drive belt to the clutch bell, and rotate the clutch bell in order to tighten
it with main wheel assembly.

Insert a 3mm steel rod through out the line up holes Using a 16mm wrench tighten the main wheel
between clutch bell the clutch front plate in order to assembly as shown in picture above.
stop the clutch bell moving.
10
