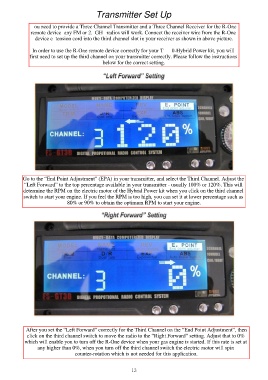

Transmitter Set Up

You need to provide a Three Channel Transmitter and a Three Channel Receiver for the R-One
remote device; any FM or 2.4GHz radios will work. Connect the receiver wire from the R-One
device extension cord into the third channel slot in your receiver as shown in above picture.

In order to use the R-One remote device correctly for your TS760-Hybrid Power kit, you will
first need to set up the third channel on your transmitter correctly. Please follow the instructions
below for the correct setting.

Go to the “End Point Adjustment” (EPA) in your transmitter, and select the Third Channel. Adjust the
“Left Forward” to the top percentage available in your transmitter - usually 100% or 120%. This will
determine the RPM on the electric motor of the Hybrid Power kit when you click on the third channel
switch to start your engine. If you feel the RPM is too high, you can set it at lower percentage such as
80% or 90% to obtain the optimum RPM to start your engine.

After you set the “Left Forward” correctly for the Third Channel on the “End Point Adjustment”, then
click on the third channel switch to move the radio to the “Right Forward” setting. Adjust that to 0%
which will enable you to turn off the R-One device when your gas engine is started. If this rate is set at
any higher than 0%, when you turn off the third channel switch the electric motor will spin
counter-rotation which is not needed for this application.
