Important Tips

Before you connect the LIPO battery to the R-One device, make sure the Third Channel setting is at the “Turn
Off” position which should be at 0% of the “Right Forward” EPA setting. Otherwise, when you turn on the
power switch of the R-One device, the electric motor will start running and you might not be ready for it at
that moment.

Please note that The R-One will divide 5.2V power from the 11.1V LIPO battery for your radio system and
servos, therefore you do not need a separate battery for the servos. Simply turn on the power switch of the
R-One and your receiver and servos will be powered from the LIPO battery.

NOTE: If you want to use a separate 6V battery for your receiver and servos, make sure you DO NOT turn on
the power switch on the R-one device, if you do that, it might cause damage to the R-one device. Just simply
keep the switch at “off” position, and connect the receiver wire from R-one device to the third channel slot in
your receiver, and R-one device will use your 6V battery power to receive the signal from transmitter when
you need to start the TS760-Hybrid power kit for your RC boat.

We recommended using the 11.1V LIPO up to 40C battery with Deans Plug Connector only, as other type
connectors might cause plug-in in wrong polarity and burn the R-one device in a second.

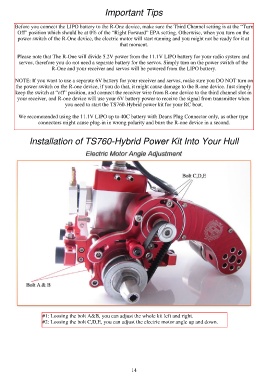

Installation of TS760-Hybrid Power Kit Into Your Hull

#1: Loosing the bolt A&B, you can adjust the whole kit left and right.
#2: Loosing the bolt C,D,E, you can adjust the electric motor angle up and down.
