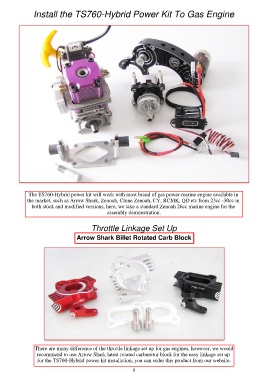

Install the TS760-Hybrid Power Kit To Gas Engine

The TS760-Hybrid power kit will work with most brand of gas power marine engine available in
the market, such as Arrow Shark, Zenoah, Clone Zenoah, CY, RCMK, QD etc from 23cc -30cc in
both stock and modified versions, here, we take a standard Zenoah 26cc marine engine for the
assembly demonstration.

Throttle Linkage Set Up

Arrow Shark Billet Rotated Carb Block

There are many difference of the throttle linkage set up for gas engines, however, we would
recommend to use Arrow Shark latest rotated carburetor block for the easy linkage set up
for the TS760-Hybrid power kit installation, you can order this product from our website.
