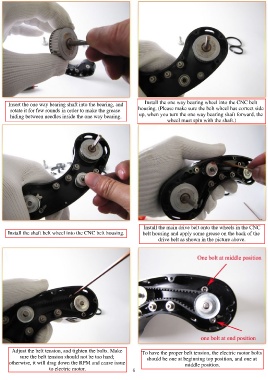

Install the one way bearing wheel into the CNC belt
Insert the one way bearing shaft into the bearing, and
rotate it for few rounds in order to make the grease housing. (Please make sure the belt wheel has correct side
hiding between needles inside the one way bearing. up, when you turn the one way bearing shaft forward, the
wheel must spin with the shaft.)
Install the main drive belt onto the wheels in the CNC
Install the shaft belt wheel into the CNC belt housing. belt housing and apply some grease on the back of the
drive belt as shown in the picture above.
Adjust the belt tension, and tighten the bolts. Make To have the proper belt tension, the electric motor bolts
sure the belt tension should not be too hard; should be one at beginning top position, and one at
otherwise, it will drag down the RPM and cause issue middle position.
