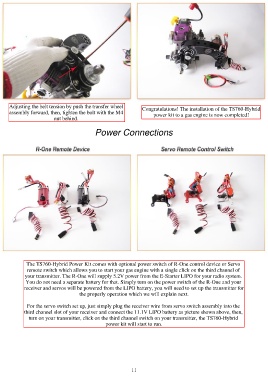

Page 11 - Arrow Shark TS760-Hybrid Power Kit Owner Manual

Adjusting the belt tension by push the transfer wheel Congratulations! The installation of the TS760-Hybrid
assembly forward, then, tighten the bolt with the M4 power kit to a gas engine is now completed!
nut behind.

Power Connections

The TS760-Hybrid Power Kit comes with optional power switch of R-One control device or Servo
remote switch which allows you to start your gas engine with a single click on the third channel of
your transmitter. The R-One will supply 5.2V power from the E-Starter LIPO for your radio system.
You do not need a separate battery for that. Simply turn on the power switch of the R-One and your
receiver and servos will be powered from the LIPO battery, you will need to set up the transmitter for
the properly operation which we will explain next.

For the servo switch set up, just simply plug the receiver wire from servo switch assembly into the
third channel slot of your receiver and connect the 11.1V LIPO battery as picture shown above, then,
turn on your transmitter, click on the third channel switch on your transmitter, the TS760-Hybrid
power kit will start to run.
