Page 7 - Arrow Shark TS760-Hybrid Power Kit Owner Manual
P. 7

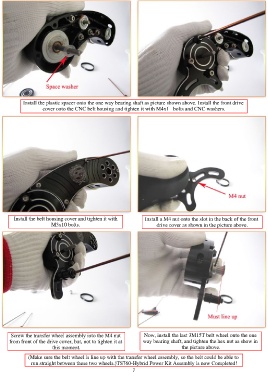

Install the plastic spacer onto the one way bearing shaft as picture shown above. Install the front drive
cover onto the CNC belt housing and tighten it with M4x12 bolts and CNC washers.
Install the belt housing cover and tighten it with Install a M4 nut onto the slot in the back of the front
M3x10 bolts. drive cover as shown in the picture above.
Screw the transfer wheel assembly into the M4 nut Now, install the last 3M15T belt wheel onto the one
from front of the drive cover, but, not to tighten it at way bearing shaft, and tighten the hex nut as show in
this moment. the picture above.
(Make sure the belt wheel is line up with the transfer wheel assembly, so the belt could be able to
run straight between these two wheels.)TS760-Hybrid Power Kit Assembly is now Completed!
7
