Page 10 - Arrow Shark Formula-X Owner Manual

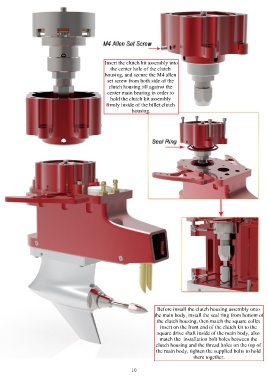

Insert the clutch kit assembly into
the center hole of the clutch
housing, and secure the M4 allen
set screw from both side of the
clutch housing till against the
center main bearing in order to
hold the clutch kit assembly
firmly inside of the billet clutch
housing.

Before install the clutch housing assembly onto
the main body, install the seal ring from bottom of
the clutch housing, then match the square collet
insert on the front end of the clutch kit to the
square drive shaft inside of the main body, also
match the installation bolt holes between the
clutch housing and the thread holes on the top of
the main body, tighten the supplied bolts to hold
them together.

10
