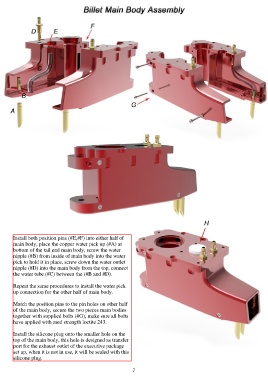

Install both position pins (#E,#F) into either half of
main body, place the copper water pick up (#A) at
bottom of the tail end main body, screw the water
nipple (#B) from inside of main body into the water
pick to hold it in place, screw down the water outlet
nipple (#D) into the main body from the top, connect
the water tube (#C) between the (#B and #D).

Repeat the same procedures to install the water pick
up connection for the other half of main body.

Match the position pins to the pin holes on other half
of the main body, secure the two pieces main bodies
together with supplied bolts (#G), make sure all bolts
have applied with med strength loctite 243.

Install the silicone plug onto the smaller hole on the
top of the main body, this hole is designed as transfer
port for the exhaust outlet of the executive package
set up, when it is not in use, it will be sealed with this
silicone plug.
