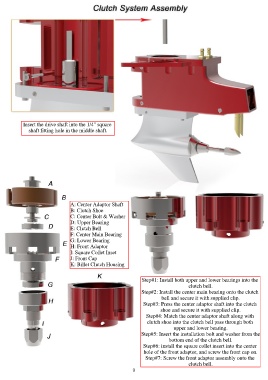

Page 9 - Arrow Shark Formula-X Owner Manual

Insert the drive shaft into the 1/4" square
shaft fitting hole in the middle shaft.

A: Center Adaptor Shaft
B: Clutch Shoe
C: Center Bolt & Washer
D: Upper Bearing
E: Clutch Bell
F: Center Main Bearing
G: Lower Bearing
H: Front Adaptor
I: Square Collet Inset
J: Front Cap
K: Billet Clutch Housing

Step#1: Install both upper and lower bearings into the
clutch bell.
Step#2: Install the center main bearing onto the clutch
bell and secure it with supplied clip.
Step#3: Press the center adaptor shaft into the clutch
shoe and secure it with supplied clip.
Step#4: Match the center adaptor shaft along with
clutch shoe into the clutch bell pass through both
upper and lower bearing.
Step#5: Insert the installation bolt and washer from the
bottom end of the clutch bell.
Step#6: install the square collet insert into the center
hole of the front adaptor, and screw the front cap on.
Step#7: Screw the front adaptor assembly onto the
clutch bell.
