Page 5 - Arrow Shark Formula-X Owner Manual

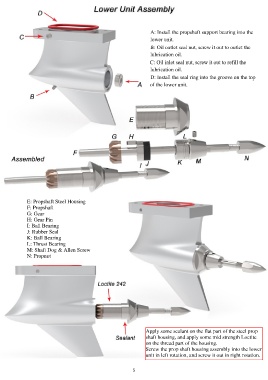

A: Install the propshaft support bearing into the
lower unit.

B: Oil outlet seal nut, screw it out to outlet the
lubrication oil.

C: Oil inlet seal nut, screw it out to refill the
lubrication oil.
D: Install the seal ring into the groove on the top
of the lower unit.

E: Propshaft Steel Housing
F: Propshaft
G: Gear
H: Gear Pin
I: Ball Bearing
J: Rubber Seal
K: Ball Bearing
L: Thrust Bearing
M: Shaft Dog & Allen Screw
N: Propnut

Apply some sealant on the flat part of the steel prop
shaft housing, and apply some mid strength Loctite
on the thread part of the housing.
Screw the prop shaft housing assembly into the lower
unit in left rotation, and screw it out in right rotation.
