Page 13 - Arrow Shark Formula-X Owner Manual

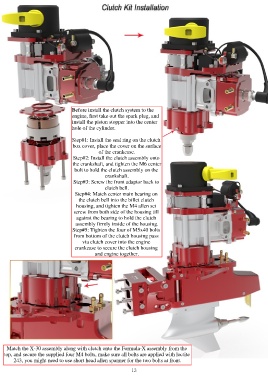

Before install the clutch system to the
engine, first take out the spark plug, and
install the piston stopper into the center
hole of the cylinder.

Step#1: Install the seal ring on the clutch
box cover, place the cover on the surface
of the crankcase.
Step#2: Install the clutch assembly onto
the crankshaft, and tighten the M6 center
bolt to hold the clutch assembly on the
crankshaft.
Step#3: Screw the front adaptor back to
clutch bell.
Step#4: Match center main bearing on
the clutch bell into the billet clutch
housing, and tighten the M4 allen set
screw from both side of the housing till
against the bearing to hold the clutch
assembly firmly inside of the housing.
Step#5: Tighten the four of M5x40 bolts
from bottom of the clutch housing pass
via clutch cover into the engine
crankcase to secure the clutch housing
and engine together.

Match the X-30 assembly along with clutch onto the Formula-X assembly from the
top, and secure the supplied four M4 bolts, make sure all bolts are applied with loctite
243, you might need to use short head allen spanner for the two bolts at front.
