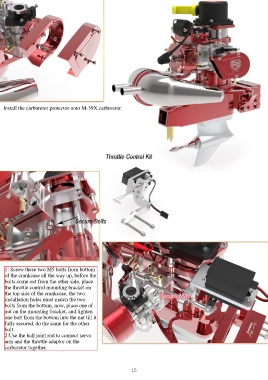

Install the carburetor protector onto M-39X carburetor.

1: Screw these two M5 bolts from bottom
of the crankcase all the way up, before the
bolts come out from the other side, place
the throttle control mounting bracket on
the top side of the crankcase, the two
installation holes must match the two
bolts from the bottom, now, place one of
nut on the mounting bracket, and tighten
one bolt from the bottom into the nut till it
fully secured, do the same for the other
bolt.
2:Use the ball joint rod to connect servo
arm and the throttle adaptor on the
carburetor together.
