Page 11 - Arrow Shark Formula-X Owner Manual

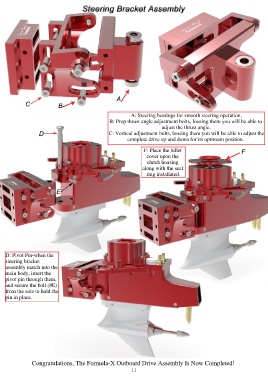

A: Steering bearings for smooth steering operation.
B: Prop thrust angle adjustment bolts, loosing them you will be able to
adjust the thrust angle.
C: Vertical adjustment bolts, loosing them you will be able to adjust the
complete drive up and down for its optimum position.

F: Place the billet
cover upon the
clutch housing
along with the seal
ring installated.

D: Pivot Pin-when the
steering bracket
assembly match into the
main body, insert the
pivot pin through them,
and secure the bolt (#E)
from the side to hold the
pin in place.

Congratulations, The Formula-X Outboard Drive Assembly Is Now Completed!
