Page 14 - Arrow Shark Formula-X Owner Manual

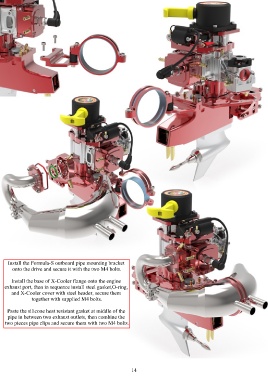

Install the Formula-S outboard pipe mounting bracket
onto the drive and secure it with the two M4 bolts.

Install the base of X-Cooler flange onto the engine
exhaust port, then in sequence install steel gasket,O-ring,
and X-Cooler cover with steel header, secure them
together with supplied M4 bolts.

Paste the silicone heat resistant gasket at middle of the
pipe in between two exhaust outlets, then combine the
two pieces pipe clips and secure them with two M4 bolts.
