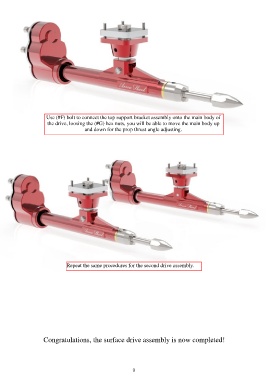

Use (#F) bolt to connect the top support bracket assembly onto the main body of
the drive, loosing the (#G) hex nuts, you will be able to move the main body up
and down for the prop thrust angle adjusting.

Repeat the same procedures for the second drive assembly.

Congratulations, the surface drive assembly is now completed!
