P. 7

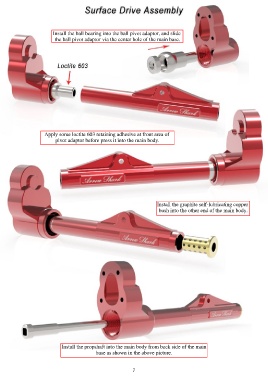

Install the ball bearing into the ball pivot adaptor, and slide
the ball pivot adaptor via the center hole of the main base.
Apply some loctite 603 retaining adhesive at front area of
pivot adaptor before press it into the main body.
Install the graphite self-lubricating copper
bush into the other end of the main body.
Install the propshaft into the main body from back side of the main
base as shown in the above picture.
7
