Page 11 - Arrow Shark X-Partner Owner Manual

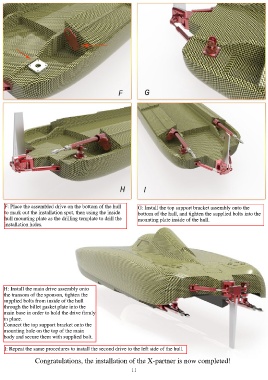

F: Place the assembled drive on the bottom of the hull G: Install the top support bracket assembly onto the
to mark out the installation spot, then using the inside bottom of the hull, and tighten the supplied bolts into the
hull mounting plate as the drilling template to drill the mounting plate inside of the hull.
installation holes.

H: Install the main drive assembly onto
the transom of the sponson, tighten the
supplied bolts from inside of the hull
through the billet gasket plate into the
main base in order to hold the drive firmly
in place.
Connect the top support bracket onto the
mounting hole on the top of the main
body and secure them with supplied bolt.

I: Repeat the same procedures to install the second drive to the left side of the hull.

Congratulations, the installation of the X-partner is now completed!
