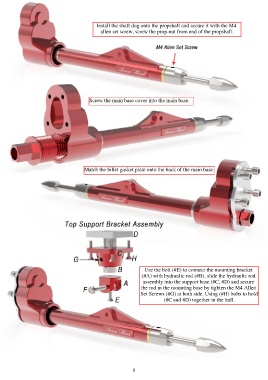

Page 8 - Arrow Shark X-Partner Owner Manual

Install the shaft dog onto the propshaft and secure it with the M4
allen set screw, screw the prop-nut from end of the propshaft.

Screw the main base cover into the main base.

Match the billet gasket plate onto the back of the main base.

Use the bolt (#E) to connect the mounting bracket
(#A) with hydraulic rod (#B), slide the hydraulic rod
assembly into the support base (#C, #D) and secure
the rod in the mounting base by tighten the M4 Allen
Set Screws (#G) at both side. Using (#H) bolts to hold
(#C and #D) together in the hull.
