P. 4

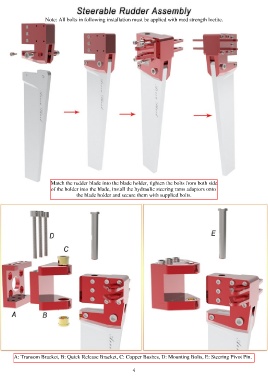

Note: All bolts in following installation must be applied with med strength loctite.











































                        Match the rudder blade into the blade holder, tighten the bolts from both side
                        of the holder into the blade, install the hydraulic steering rams adaptors onto
                                   the blade holder and secure them with supplied bolts.










































       A: Transom Bracket, B: Quick Release Bracket, C: Copper Bushes, D: Mounting Bolts, E: Steering Pivot Pin.


                                                            4
