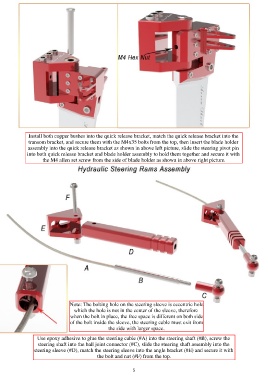

Install both copper bushes into the quick release bracket, match the quick release bracket into the
transom bracket, and secure them with the M4x35 bolts from the top, then insert the blade holder
assembly into the quick release bracket as shown in above left picture, slide the steering pivot pin
into both quick release bracket and blade holder assembly to hold them together and secure it with
the M4 allen set screw from the side of blade holder as shown in above right picture.

Note: The bolting hole on the steering sleeve is eccentric hole
which the hole is not in the center of the sleeve, therefore
when the bolt in place, the free space is different on both side
of the bolt inside the sleeve, the steering cable must exit from
the side with larger space.

Use epoxy adhesive to glue the steering cable (#A) into the steering shaft (#B), screw the
steering shaft into the ball joint connector (#C), slide the steering shaft assembly into the
steering sleeve (#D), match the steering sleeve into the angle bracket (#E) and secure it with
the bolt and nut (#F) from the top.
