Page 10 - Arrow Shark X-Partner Owner Manual
P. 10

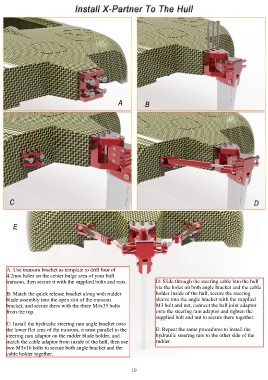

A: Use transom bracket as template to drill four of
4.2mm holes on the center bulge area of your hull
transom, then secure it with the supplied bolts and nuts. D: Slide through the steering cable into the hull
via the holes on both angle bracket and the cable
B: Match the quick release bracket along with rudder holder inside of the hull, secure the steering
blade assembly into the open slot of the transom sleeve into the angle bracket with the supplied
bracket, and secure them with the three M4x35 bolts M3 bolt and nut, connect the ball joint adaptor
from the top. onto the steering ram adaptor and tighten the
supplied bolt and nut to secure them together.
C: Install the hydraulic steering ram angle bracket onto
the lower flat area of the transom, it must parallel to the E: Repeat the same procedures to install the
steering ram adaptor on the rudder blade holder, and hydraulic steering ram to the other side of the
match the cable adaptor from inside of the hull, then use rudder.
two M3x16 bolts to secure both angle bracket and the
cable holder together.
10
